Clutch Kit Yanmar F | YM Type 1 F5-F165 | YM1301-YM 1720

Description

This clutch set is of high quality and the compatible models have been selected with great care!

Suitable for the following models:

Yanmar

• F5, F6, F7, F14, F15, F16, F145, F155, F165, F175 (D)
• FX175 (D)
• YM1301, YM1502, YM1510, YM1601, YM1602, YM1610, YM1702, YM1720
• YM1300, YM1300D, YM1301, YM1301D, YM1401, YM1401D, YM1502, YM1502D, YM1510, YM1510D, YM1601, YM1601D, YM1602, YM1602D, YM1610, YM1610D, YM17 02, YM1702D, YM1720 YM1720D
• YM135, YM135D, YM155, YM155D, YM169, YM169D, YM180, YM180D, YM186, YM186D

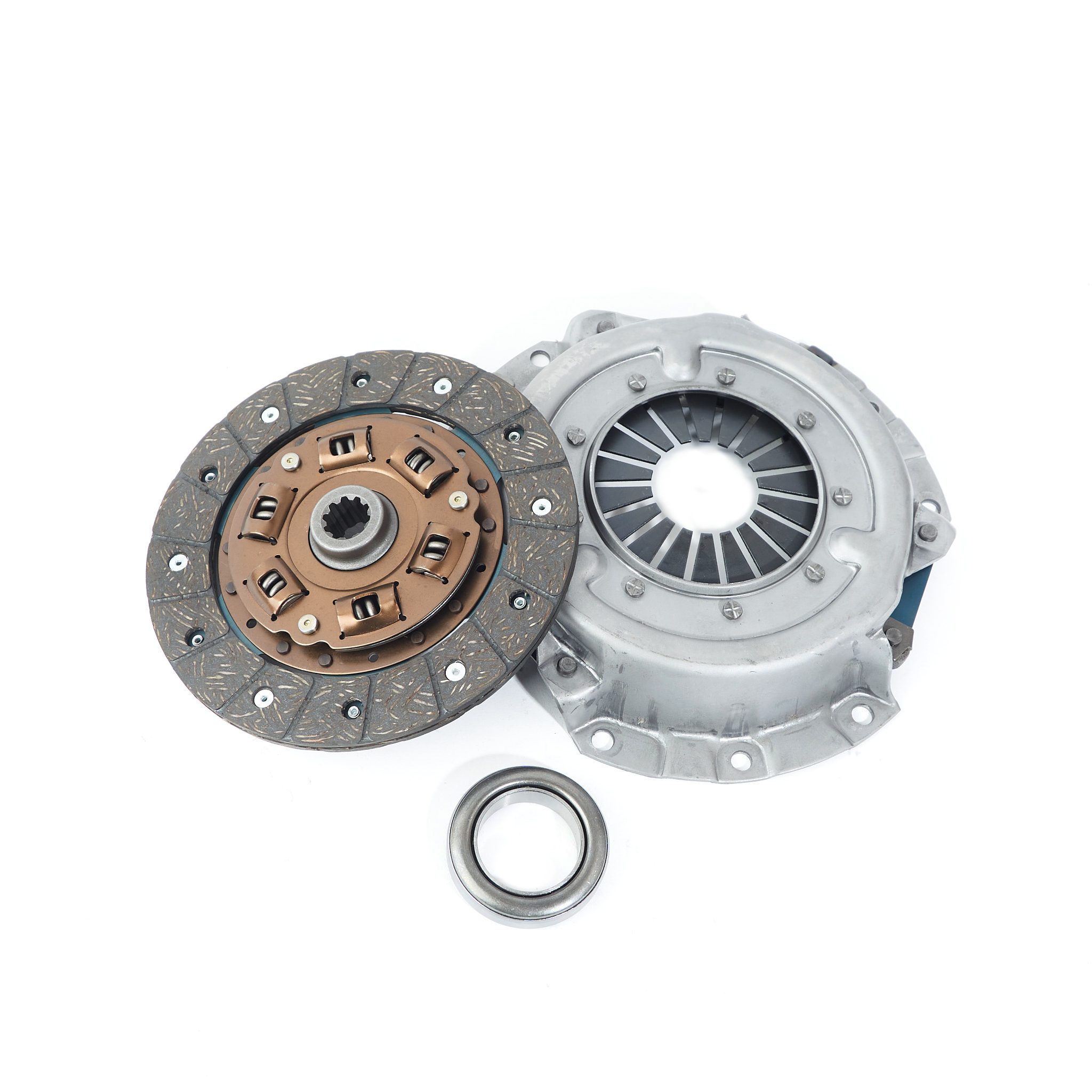

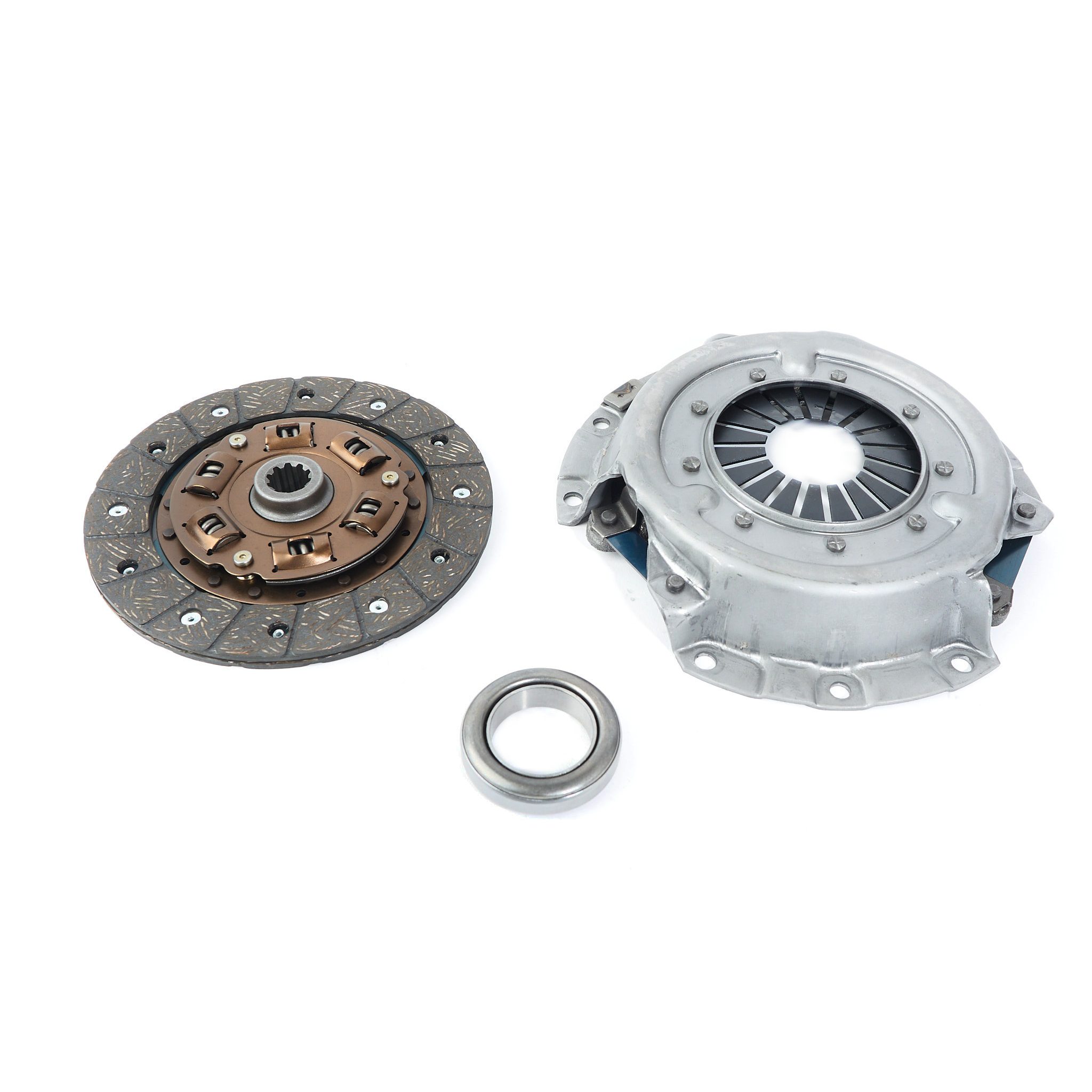

The set includes:

• Release bearing

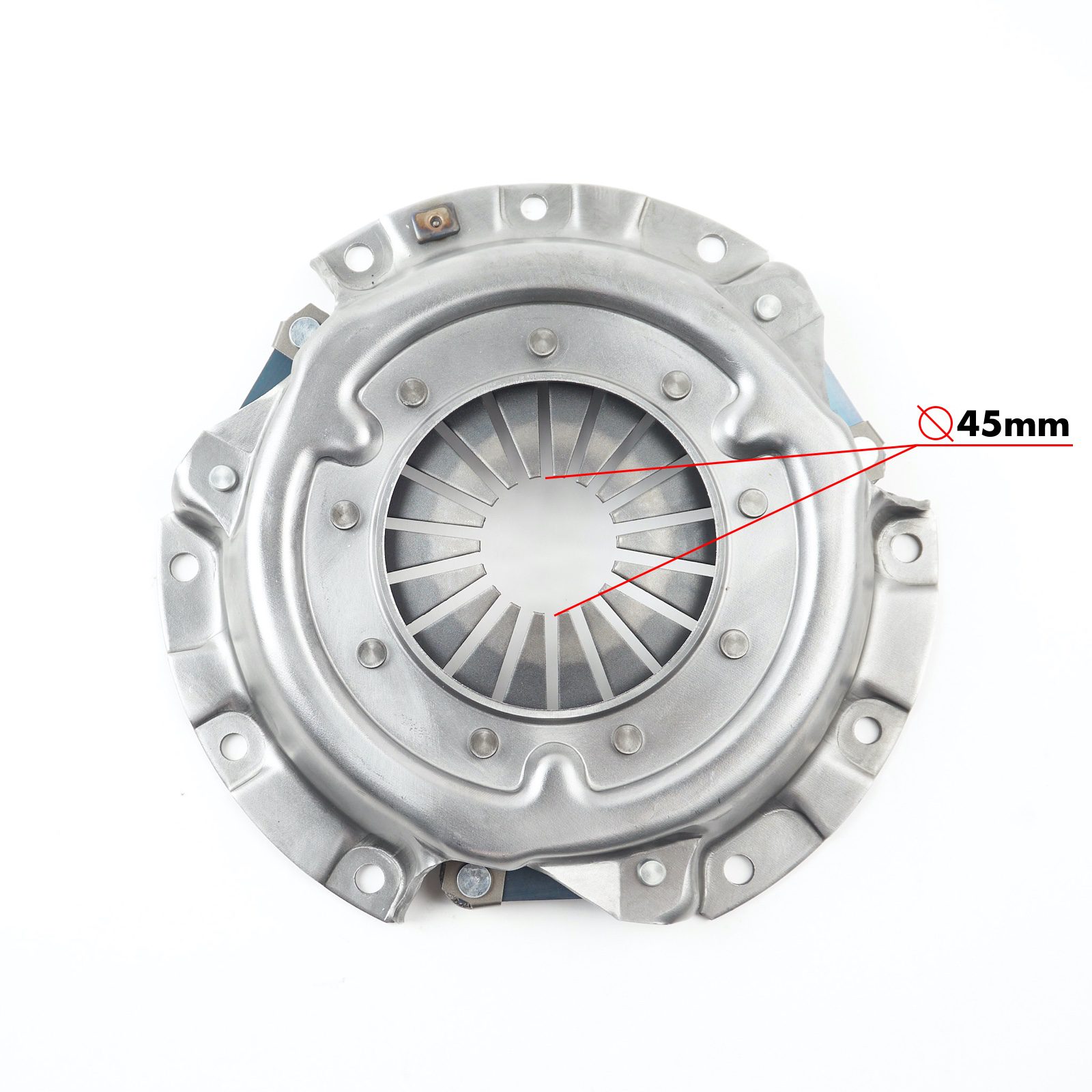

• Pressure plate

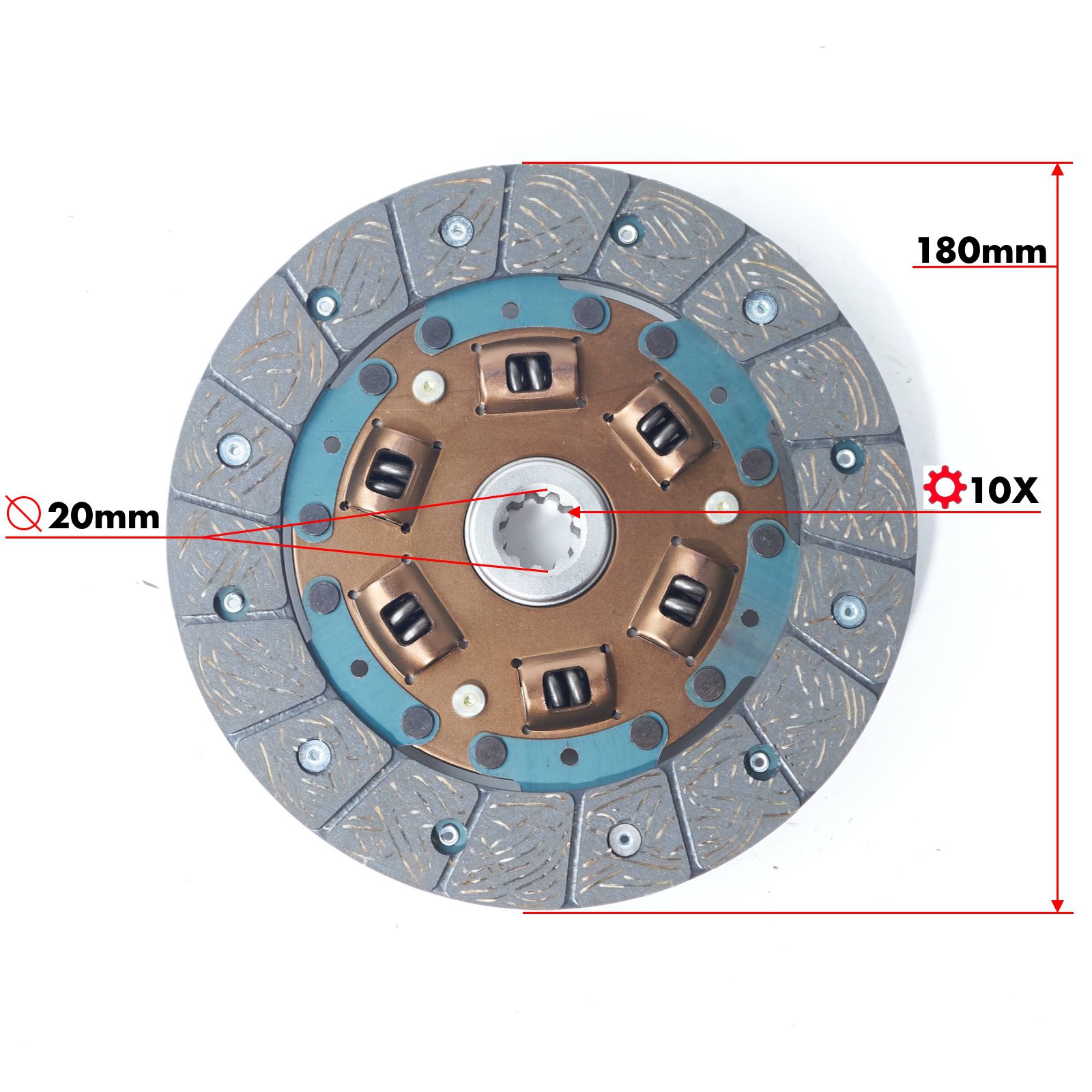

• Clutch plate (180mm/10splines)

Sizes:

• Diameter: 180mm, 7 1/2″, Splines: 10
• Diameter: 20mm

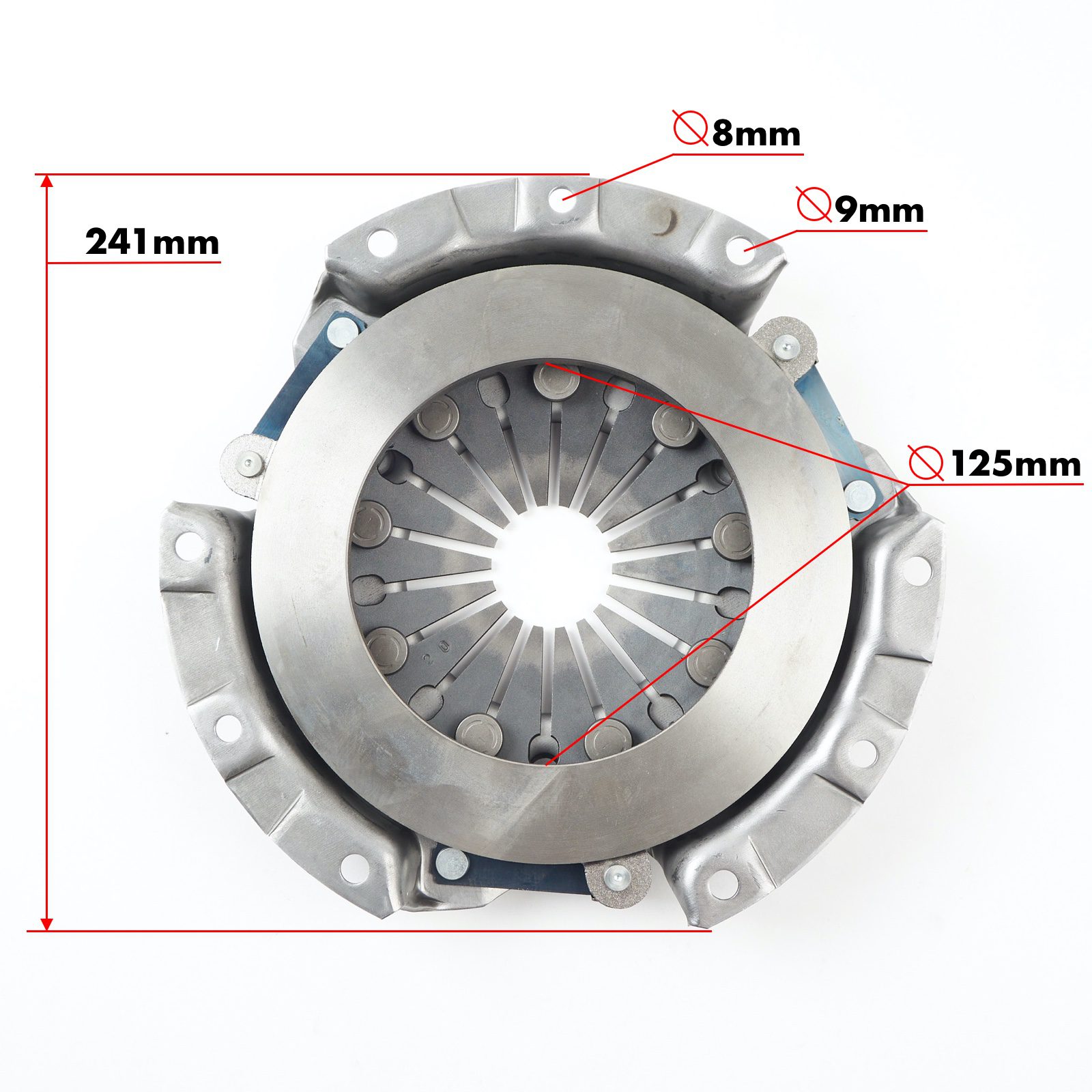

• Pressure plate : 7-1/8″

OEM for reference

• 794200-21400, 194340-21400, 194357-21400, 194500-21410, 194262-21700, 194440-21700, 194440-21701, 194340-21700, 194200-22180, 124950-21230
• 794200-21700
• 194440-21701- Pressure plate
• 194262-21400, 194515-21400- Clutch plate
• 194200-22180, 194990-42710 – release bearing
