Clutch Kit Shibaura S318 – S320 | P15 – P17f | SL1503 – SL1743 | ST | Ford 1200 – 1220 | NH TC18 – TC24

Description

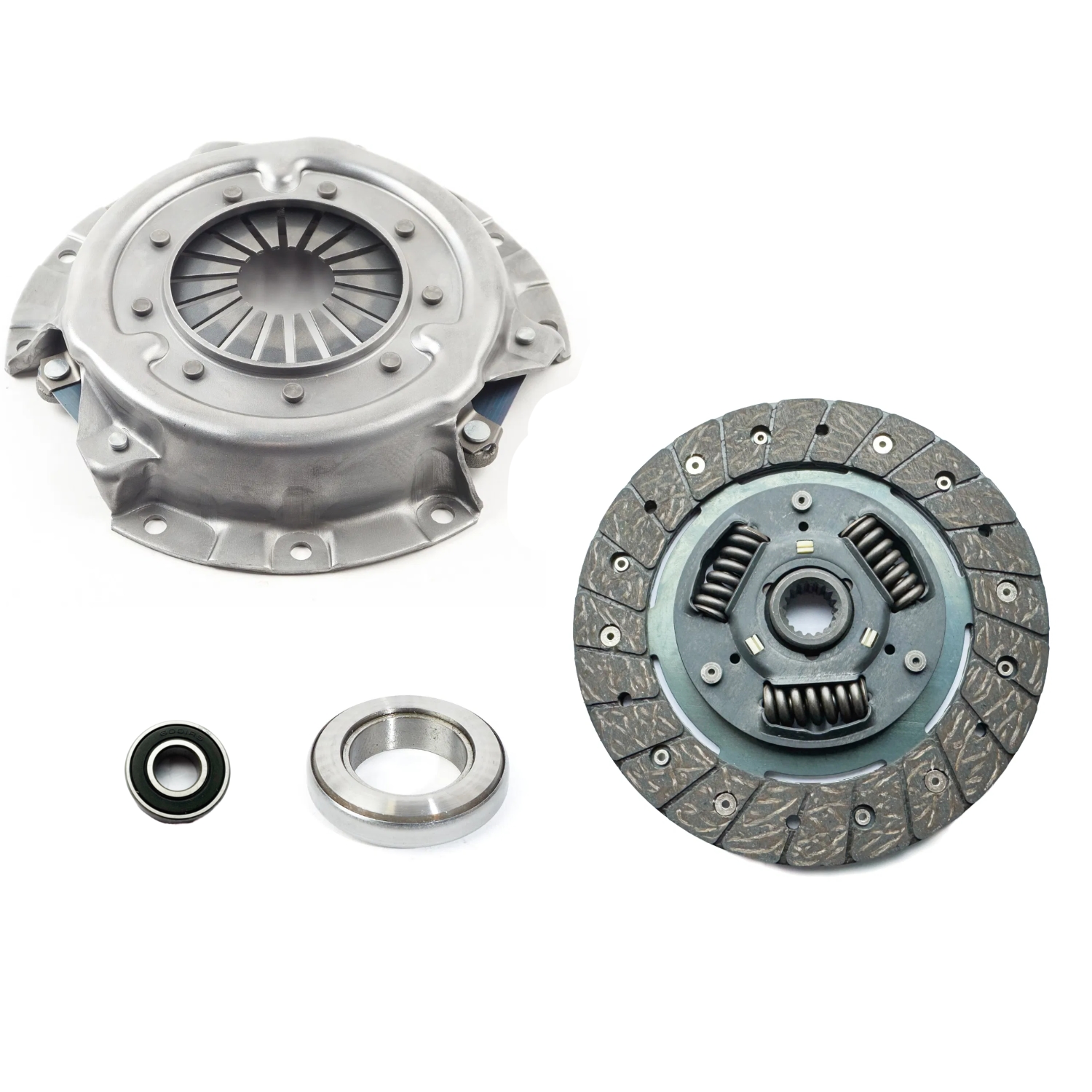

Clutch Kit for Shibaura – Complete, Compact and Ready for Installation

This high-quality clutch set is specially designed for Shibaura tractors. The set ensures direct, smooth and reliable power transmission, thanks to durable materials and a spring-loaded clutch plate. Ideal for a complete clutch overhaul.

✅ Due to age, it’s important to replace everything, and this complete set takes care of that!

✅ Including release bearing – ready for installation

✅ The pilot bearing is often forgotten during a clutch overhaul, but it is strongly recommended to always replace it with a new clutch.

✅ Worry-free installation with all essential parts in one package

Contents and Technical Specifications

Pressure plate

• Diameter: 185 mm (7.25″)
• Construction: Standard, mechanical version

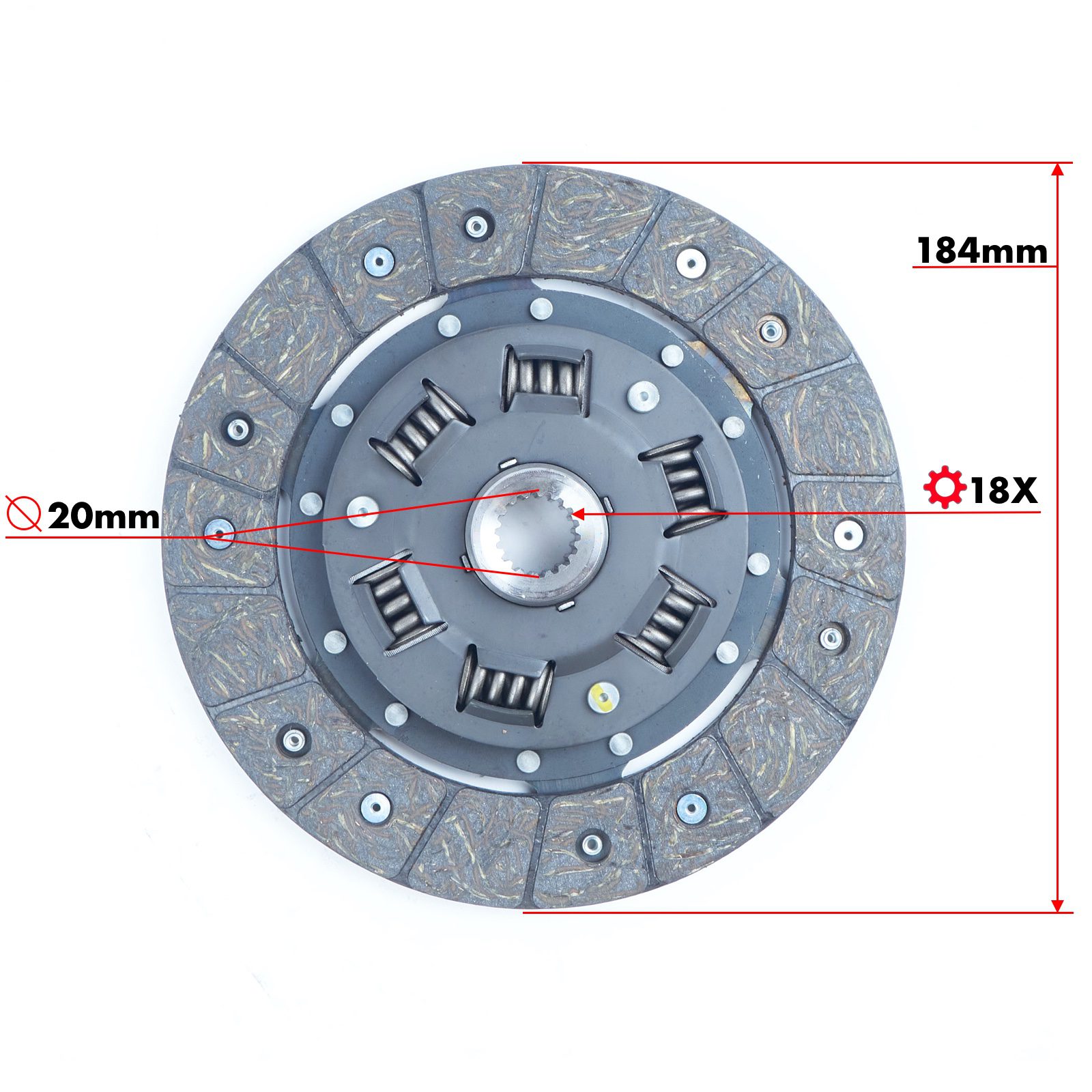

Clutch Plate

• Diameter: 184 mm (7-1/4”)
• Hub Diameter: 13/16” (20.6 mm)
• Spline: 18 teeth (splines)
• Clutch core: With spring mechanism (sprung)
• Friction material: Woven – wear-resistant and reliable

Release bearing

• Dimensions: 67 mm (outside) x 38 mm (inside) x 14.5 / 16 mm (height)

Pilot bearing

• Inner Diameter: 0.475” (12.07 mm)
• Outer Diameter: 1.102” (28 mm)
• Width: 0.313” (7.95 mm)
• In MM designation: 28x12x8 mm

Shibaura

• S318, S320
• ST318, ST321, ST324
• P15, P15F P17, P17F P155
• SL1503, SL1543, SL1703, SL1743
• SP1500, SP1540, SP1700, SP1740
• SU1500, SU1540

Ford

• 1200, 1210, 1215, 1120, 1220

New Holland

• TC18, TC21, TC23, TC24D, TC24DA

OEM for reference

• SBA398560110, SBA320450160, SBA320400243
